TSD MAXIARC 200LT
210 ARC200

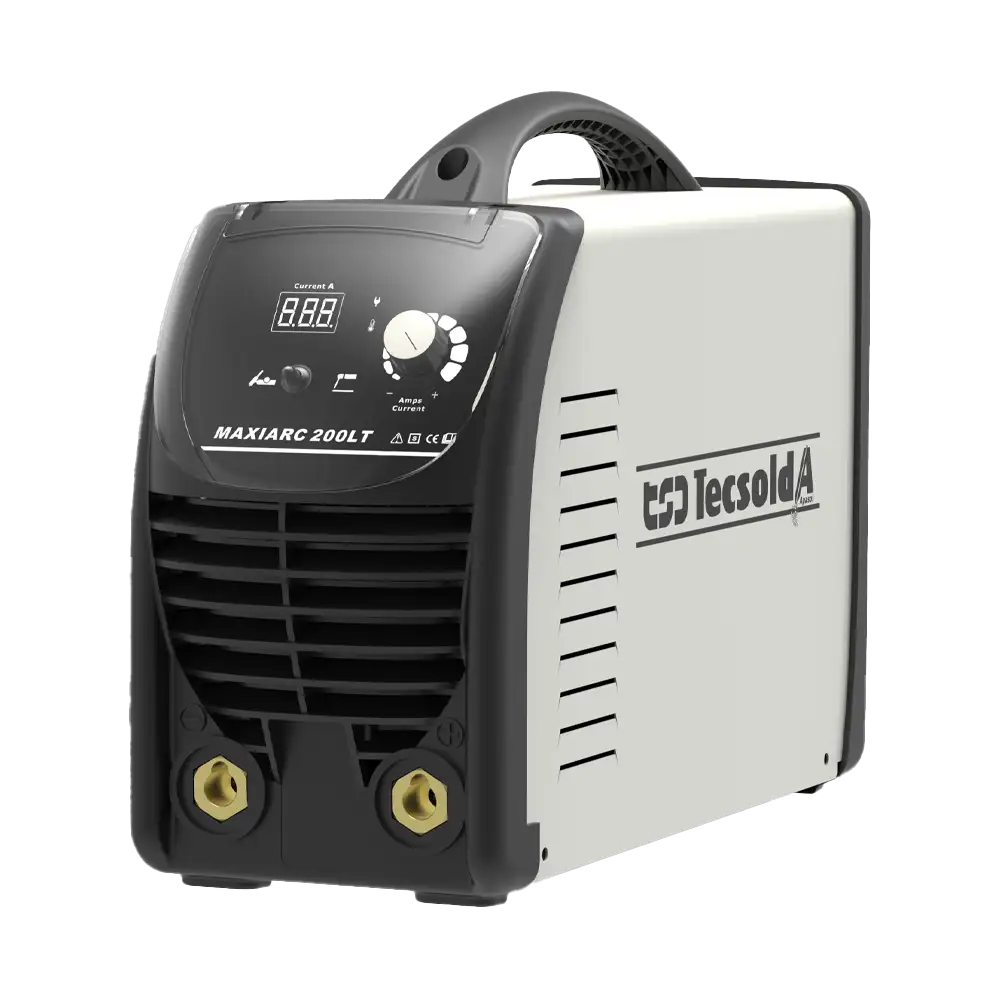

TSD MAXIARC 200LT

Item Code: 210 ARC200

Inverter multifunction machine for the welding of coated electrode and a TIG torch can be added optionally to work with LIFT-ARC by contact.

The welding mode MMA an TIG allows an easy regulation: with the increase or decrease of the working power according to the thickness of the plate the machine regulates by itself the others weld parameter, which best results in an stable arc.
As option, the machine can work with TIG accessories.

Its portability and versatility make it the perfect machine for light maintenance tasks and also for use it in bodyshops.








Technical Specifications
Power supply 230V 50-60Hz
Effective current MMA 28 A, TIG 19 A
Rated input power MMA 5.0 kW, TIG 3.3 kW
Rated input current MMA 36 A, TIG 25 A
No load voltage 62 V
Weight 6.2 Kg
Dimensions 340 x 150 x 240 mm
